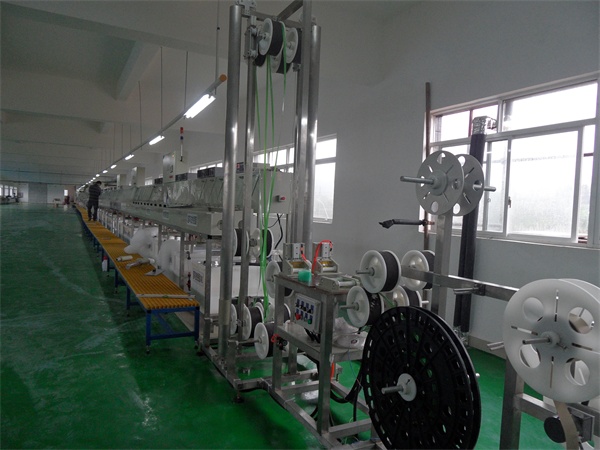

Automatic roll-to-roll continuous plating production line

The roll-to-roll continuous production line includes automatic retractable and unloading machines, tension-free buffering machines, tractors and precision plating equipment. Its biggest feature is to complete the surface treatment in the process of continuous plating through the equipment to achieve the continuity and completion of the product surface! Suitable for in-line, patch, high power, SMD, piranha and other LED, IC lead frame, terminals, connectors and other precision selection plating, can be plated thick silver (gold) in the functional area, the rest of the plating Thin silver (gold), thus achieving the purpose of saving raw materials and reducing costs.



main feature:

1, high speed, running speed is generally 0-80m / min, can also be customized according to customer requirements.

2. High precision, precision of plating area: ±0.05-±0.1mm

3. Suitable for materials with a material width of 5-300mm and a material thickness of 0.1-3mm.

4. The production line channel is generally designed to be 1-4 channels, and special process is customized according to customer requirements.

5. Production statistics, each production line is equipped with an independent production counter.

6, small size, save space.

7, low air pollution, each plating tank is equipped with an independent sealing structure and pumping pipeline.
