The PCB electroplating production line series mainly includes wet-process equipment such as desmear and chemical copper, full-plate electroplating, graphic electroplating, electro-copper nickel-gold, electroless nickel-plating gold, black oxidation, gold finger plating, etc. Needs, design and manufacture of different styles, there are mini, single arm, gantry, open, siding, hanging, floor, manual, semi-automatic, fully automatic and so on.
With the rapid development of electronic information technology, the manufacturing requirements for circuit boards are becoming higher and higher. Especially the production of filled and blind-hole circuit boards has become quite common. In order to meet the needs of this market, the company has developed available for filling, Conventional vertical plating line for blind hole line fabrication.

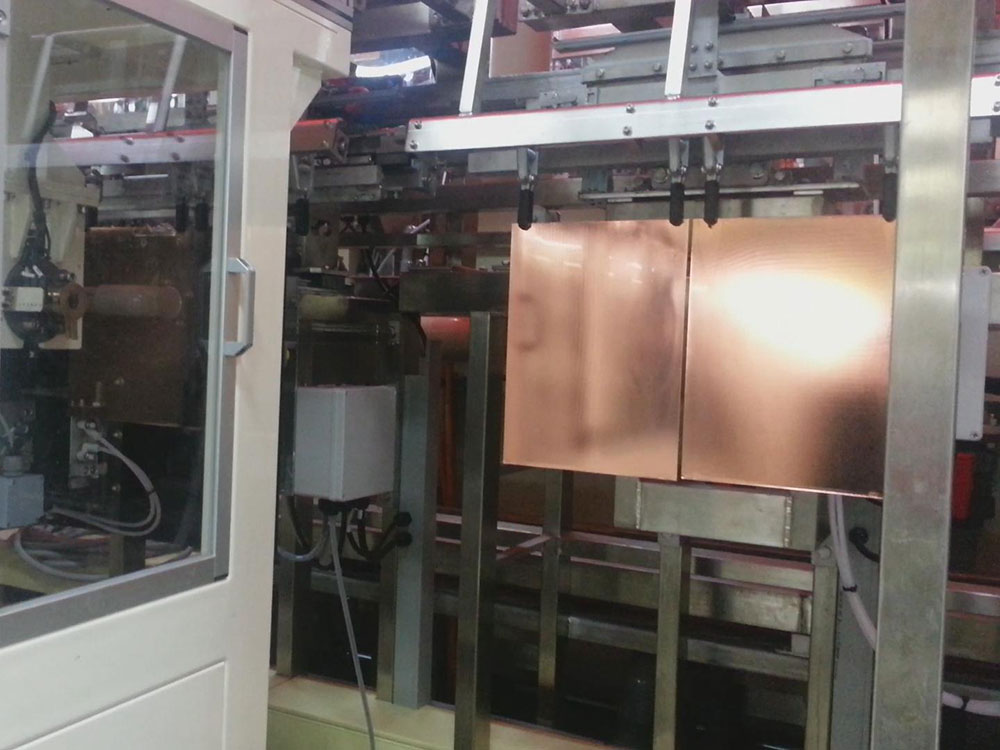

The fully automatic vertical continuous plating line comprises a pre-processing part, a post-processing part and a copper plating tank, wherein the copper plating tank is located in the middle of the production line, and the pre-processing part has two sets, which are arranged on both sides of one side of the copper plating tank; There are also two sets of processing parts, which are arranged on both sides of the other side of the copper plating tank. This plating line can effectively increase productivity and occupy a small footprint.
Features: Vertical continuous plating line has good plating distribution, filling and filling ability, and the plating quality is stable. At the same time, the equipment also has the advantages of low exhaust emission, easy operation and maintenance, and small space occupation. It is fully environmentally friendly and energy-saving. It is suitable for full-board electroplating, graphic electroplating, electro-copper-nickel gold and high aspect ratio. PCB process equipment.
