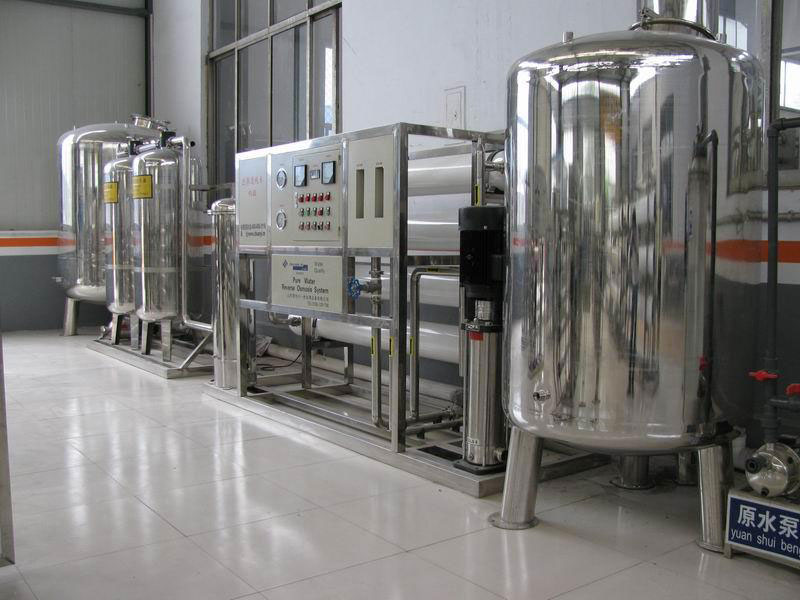

The single-stage reverse osmosis pure water machine uses brand accessories, the system runs reliably, and the ultra-low pressure reverse osmosis membrane module has low energy consumption and high water production.
Technical indicators
1. Water production: 2000L/H (25°C)
2. Effluent water quality: The conductivity of reverse osmosis water is <15us/cm, and the salt rejection rate is >98%, which is used for production process water.
3. Raw water quality: municipal tap water
4. Design boundary: all pipelines from the original water tank inlet to the pure water tank, valves and electronic control
5. Process: tap water----raw water tank----water supply pump----multi-media filter----activated carbon filter----softening filter----security filter--- -High pressure pump----Reverse osmosis unit----Pure water tank
Process Description
1. Adopt advanced ultra-pure water manufacturing process: reverse osmosis technology, complete system configuration and rich margin, control system fully automatic operation, stable effluent quality.
2. According to the characteristics of raw water quality, the pre-treatment process guarantees the requirement of reverse osmosis water. It adopts advanced membrane combination pure water manufacturing process, automatic continuous operation and low operating cost.
3. The system is fully prepared and has sufficient margin, fully automatic operation, and the effluent water quality is stable.
Process flow
Raw water → original water tank → original water pump → multi-media filter (quartz sand filter) → activated carbon filter → soft water processor (adding scale inhibitor device) → precision filter → high pressure pump → first-stage reverse osmosis (RO) device → Ultraviolet sterilizer (ozone sterilizer) → Water point
Application range
1. Preparation of pure water and ultrapure water in industries such as electronics, industry, food, etc.;
2. Purification and preparation water for process water/chemical circulating water and chemical product manufacturing in light textile and chemical industry;
3. Water for purification and preparation of water for food and beverage industry, drinking pure water, beverages, beer, liquor, health care products, etc.;
4. In the industrial production, the useful substance and concentration and recovery of the aqueous solution;
5. Pre-heating of high-pressure boiler feed water for boilers such as boiler feed water, thermal power boilers, mines, low-pressure boiler power systems, etc.
