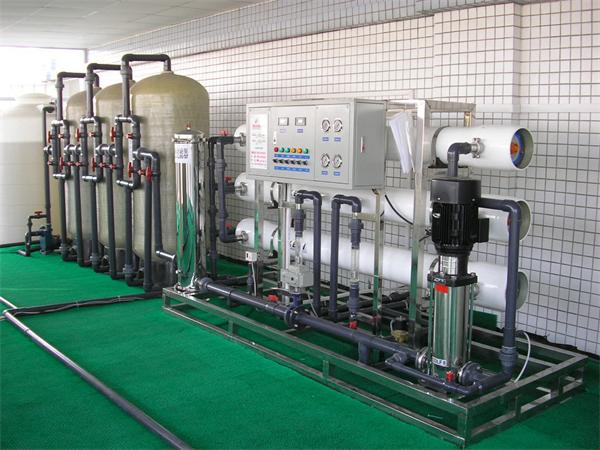

RO reverse osmosis device
Equipment Description: Reverse osmosis is a membrane separation technology that uses pressure to drive through the (semi-transmissive) membrane. When the pressure applied in the system is greater than the osmotic pressure of the influent solution, the water molecules Continuously permeating through the membrane, flowing into the central tube through the product water channel, and then impurities in the water flowing out at one end, such as ions, organic matter, bacteria, viruses, etc., are trapped on the water inlet side of the membrane, and then flow out at the concentrated water outlet end, thereby Achieve separation and purification purposes.
Technical features:
The purity of water produced by RO reverse osmosis technology is the highest among all water-making technologies currently in control, and the cleanliness is almost 100%. Our company adopts the original imported film original, the device realizes the automatic film flushing function after starting the machine, and the washing time is adjustable 2-10 minutes. The equipment has a wastewater return device, which can be used for secondary use of water to improve water utilization and save water costs. Low-pressure protection system, when the source water pressure is insufficient or passive water, the equipment automatically stops to protect the high-pressure pump and equipment safety. The equipment can be automatically shut down after the water tank is full. The equipment is equipped with a cleaning and maintenance system, which can regularly clean and maintain the equipment to prolong the service life of the reverse osmosis membrane. The equipment adopts a stainless steel frame structure to achieve no sanitary corners and the equipment is non-corrosive. Reverse osmosis equipment can be used together with filling equipment to reduce investment costs and improve water resource utilization. The equipment can basically achieve 24-hour unattended operation. An online water quality tester is available to observe the water quality at any time.
Application range:
The system is equipped with automatic low-pressure flushing device, online CIP cleaning system, high and low voltage protection device, conductivity meter, flow meter, pressure gauge and other equipment. It is the preferred configuration for food and beverage industry, high-purity water for electronic industry integrated circuits, pharmaceutical industry, cosmetics, electroplating, power station water, and high-pressure boiler feed water.
Main configuration:
Pretreatment system: raw water pump, multi-media filter, activated carbon filtration, automatic water softener
RO reverse osmosis system: pipeline, valve, high pressure pump, reverse osmosis membrane, reverse osmosis membrane shell, membrane frame, control system, water inlet solenoid valve, flushing solenoid valve, pressure regulating valve, high pressure switch, low pressure switch, precision filter Liquid level controller
Storage system (optional): water tank, water pump
